This kit includes a 4CH H.264 standalone DVR with 500GB HD and 4 night vision video audio security cameras providing everything you need to have your surveillance system up and running in your home or business quickly and easily.
DVR Features
4CH H.264 Surveillance DVR with 7" LCD Monitor Built-in
500GB HDD Installed
H.264 Hardware Compression
Video I/O: BNC 4 / BNC 1
Audio I/O: RCA 2 / RCA 1
Alarm I/O: RCA 4 / RCA 1
Support mobile phone live view & email alarm
Real hexaplex operation ---simultaneous record, playback,mobile phone live view , backup, control & remote access
Support 4-channel Real-time record and playback at the same time
User-friendly interface: 16 bit true color, semi-transparent graphical user interface
Support D1,HD1,CIF for recording quality
Hi-speed backup/upgrade/record via USB2.0
Support Remote View via Smart Phone & 3G Mobile with each of those systems below:
a) iPhone
b) Google Android
c) Blackberry
d) Windows Mobile
e) Symbian
Camera Feature
C8103VD
1/3" Color CMOS Image Sensor
420 TV Lines, Horizontal
6mm Lens
IR Irradiation Distance: up to 50'
IR LEDs: 30pcs
With Audio
Video Connector: BNC
Power Connector: RCA 12V DC
C7834SC
1/4" Color Sony Super HAD CCD Image Sensor
420 TV Lines, Horizontal
3.6mm Lens
IR Irradiation Distance: up to 50'
Mount: Ceiling or Wall
Video Connector: BNC
Power Connector: RCA 12V DC
12PCS ?5 IR LED
IP 65

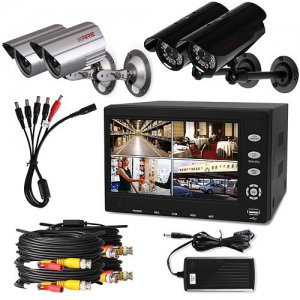

Package Includes
(1) D7224HM Surveillance DVR w/ 500GB HDD
(2) C8103VD Video Audio Security Camera
(2) C7834SC Indoor/Outdoor Security Camera
(2) X1801BD 60ft Video/Power Cable
(2) X1832BR 60ft Video/Audio/Power Cable
(1) IR Remote Control & Mouse
(1) Power Adapter and 1 to 5 Splitter Cable
(1) Ground wire
(1) User's Manual
